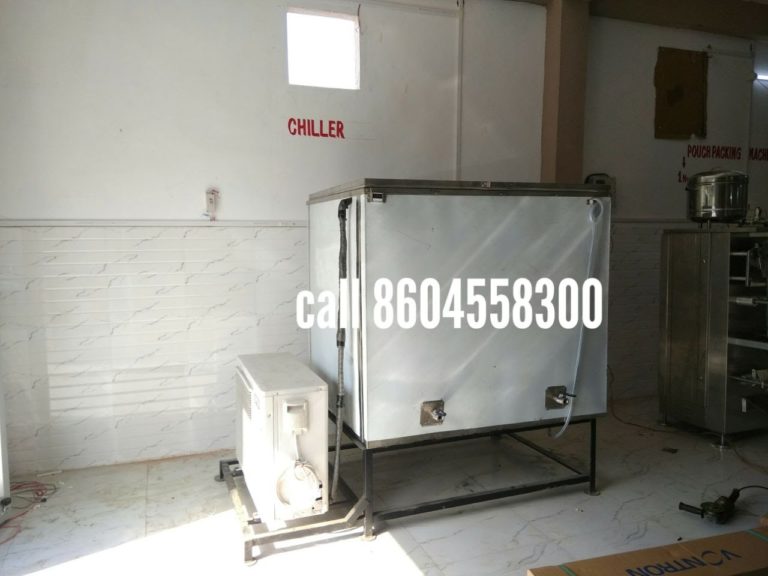

Stainless Steel Water Chiller
TECHNICAL DETAILS
FEED FLOW : 1000 LPH
PERMEATE FLOW : 1000 LPH
MAXIMUM INLET TDS : 1500 ppm
PERMEATE TDS : < 75 ppm
RECOVERY : 100%
INLET PRESSURE : 3.0 Kgs/cm2
POWER : 1-Phase, 220 V AC
SCOPE OF SUPPLY
Compressor: KIRLOSKAR Copeland 2 Tons
Water Flow Switch
Supply Pump: 1 hp( additional)
Flow Rate : 1000 lph
Flow Temp: 12 Degree Centigrade Approx
Temperature Meter
SKID [MS] : One
ROF INDICATOR : Two
CONDUCTIVITY INDICATOR [0-200 μs] : One
11.Input supply: 1 phase
12.Input voltage: 220 volts of phase
Inlet water temperature: 22 degree max
Outlet water temperature: 12 degree approx
Full machine is designed on SS ( 20 Guage)
Max duty cycle 15 hours a days
