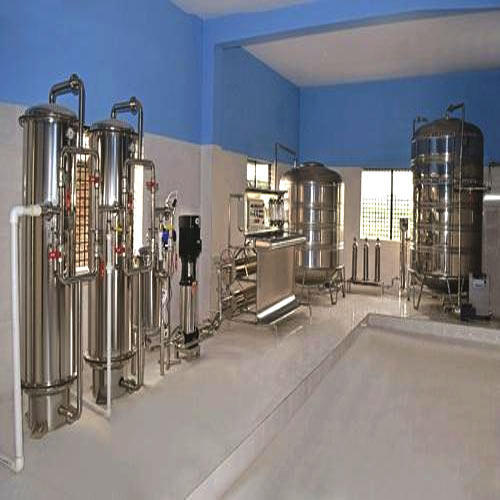

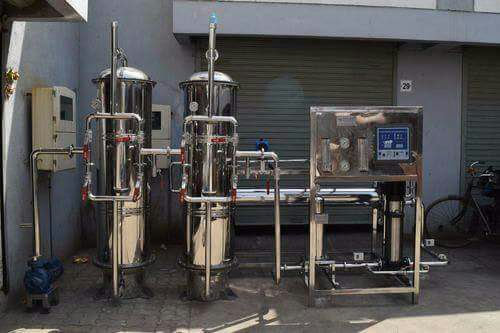

ISI Ro Plant Full Setup with Uv and Ozonator

850,000.00

Availability: 200 in stock

We Offer Isi Ro Plants according to Criteria and Norms of BIS Standards.



We Offer Few Things in the package of this setup are as Below:



  • ISI Ro Plant Full Stainless Steel

  • UV Sterlizer System

  • Ozonator System of 1 Grams

  • Stainless Steel Water Storage Tanks of 2000 Litres ( 2 Pcs )

  • 2 Pcs Water Pouch Packing Machine of Production Capacity – 3500 Pph


Technical Specifications of Ro Plant with Uv & Ozonator System:



  1. CARTRIDGE FILTER [5 Micron] : 2 No.
  2. RO MEMBRANES : 80*40 ( VONTRON/CSM)
  3. NO. OF MEMBRANES : 2
  4. MEMBRANE HOUSING : 1 ( Stainless Steel)
  5. NO. OF HOUSING : 1
  6. HIGH PRESSURE PUMP [SS 2-22] : One (LUBI/SHAKTI/CRI)
  7. PRESSURE GAUGES [0-5 & 0-20] : One Each
  8. SKID [SS] : One
  9. ROF INDICATOR: Two
  10. CONDUCTIVITY INDICATOR [0-200 μs] : One
  11. INTERCONNECTING PIPEWORK: One Lot SS
  12. LP SWITCH [SS] : One
  13. STAINLESS STEEL Vessel 14-65: 2 (Pentair make)
  14. Tds ,meter online : 1 (Digital)
  15. Frame: 1.5 Inches Stainless Steel
  16. Pannel box :1
  17. Sand Chemical: 300 kg
  18. Carbon Chemical : 50 kg
  19. Pipework and Supply : SS
  20. 20. Multiport valve :1.5 inches(genuine)
  21. Ozonator System – 1 Gram
  22. Uv Sterlizer- Ss Imported

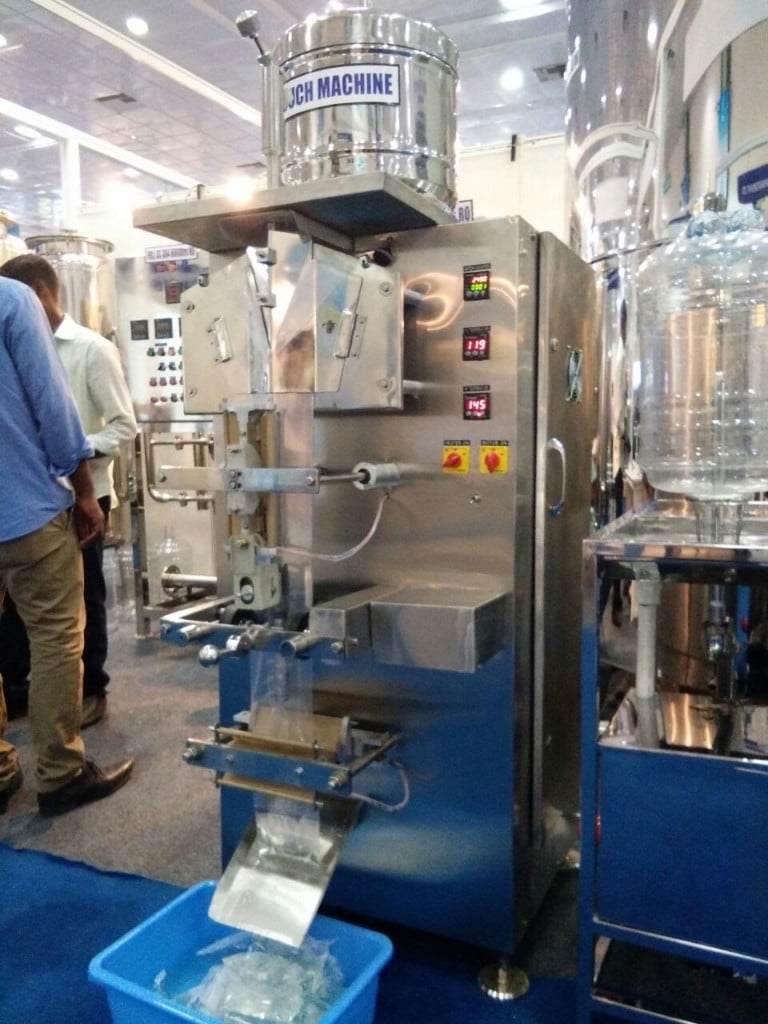

Technical Details of Water Pouch Packing Machine:



  1. Feeding head: Continuous gravity flow filling system.
  2. Production Speed: 3200 to 3600 pouches per HOUR.
  3. Machine Control system: Electrical Controls.
  4. Packing range: 100ml to 500ml.
  5. Film Width: 325 mm
  6. Film Thickness: 60 to 110 microns.
  7. Film Material: Co-Extruded Virgin films
  8. Sealing System: PID controlled continuous heating system
  9. Filling Accuracy : +/- 3ml.
  10. Inner Core Dia. of Film Roll: 70mm.
  11. Outer Dia. of the film Roll: up to 350mm.
  12. Pouch Style: Center sealed Pillow type.
  13. Pouch Width : 150mm/110mm
  14. Pouch Length: up to 190mm.
  15. Compressed Air pressure : N/A.
  16. Air consumption: N/A.
  17. Power Consumption: 1 KW/Hour.
  18. Peak Power : 2 kW.
  19. Power requirement : Single Phase, 220 V, 50Hz.
  20. Pouch Counter : Provided.
  21. Net Weight : 200 kgs (approx.)
  22. Automatic Pouch Counter : Inbuilt Digital
  23. Date Printing Machine : Automatic Numeric
  24. UV sterlizer : 20 Watts Philips
  25. Automatic alarm : on 100 pouches





Aquafilter 1000 Lph Ro System With 2 Ton Online Water Chiller

Weight 700 kg
Dimensions 600 × 1200 × 400 cm
